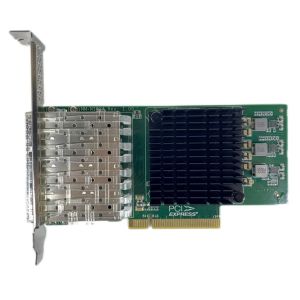

Name: HZ10N10F4 10G 4Port PCIe Gen3x8 Network Card with 8W Power
Brand: HengzhengTC
Price: 1 USD

Brand Name : HengzhengTC

Model Number : HZ10N10F4

Place of Origin : China

MOQ : 1 pieces

Price : US $ 155-400 / pieces

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

Port : 4

Port Rate : 10Gbps

PCIe Bus : PCIE3.0 x8

Power Consumption (Max) : 8W

Working Temperature : 0ºC ~ 70ºC

Quality assurance : 3 years

Contact Now

controller	Domestic N100 Gigabit Intelligent Network Controller
transmission medium	optical fibre
Optical fiber type	10GBASE-SR,10GBASE-LR,10GBASE-Cu 1GBASE-SR,1GBASE-LR,1GBASE-Cu
Power consumption (Max)	8W
Port type	4 10G SFP+ connectors
PCIe bus	PCIE3.0 x8
portrate	10Gbps
Power supply	PCIe power supply
dissipate heat	Passive heat dissipation
Working temperature	0ºC~ 70ºC
Working humidity	10%~90% without condensation
Storage temperature	-40ºC~85ºC
Storage humidity	5%~95% without condensation
meet a criterion	IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1Q VLAN IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P IEEE 802.3ac IEEE 802.2
Network characteristics	Support RSS with a maximum of 256 queues. Support packet unloading, IP/TCP and IP/UDP checksum unloading; TSO/GRO/TCO/RCO support. Support packet filtering, and support packet filtering based on MAC/VLAN/TCP_SYN and quintuple. Support packet redirection, support packet redirection based on MAC/VLAN/TCP_SYN and quintuple. Support flow control mechanism and FC/PFC. Support virtual Ethernet bridge (VEB) Support VxLAN/NVRGE Support PXE Support sideband management Support VLAN, support QinQ Support IPV4/IPV6.
